Vacuum Grease Guns

Click to download FULL PDF - Bulletin 1345

Vapormatic has introduced two new spring-less, 'ready-to-go' Vacuum Grease Guns into the existing lubrication range. The new models are side lever or pistol grip actuated; both guns are designed to use 400g Din 1284 screw-type cartridges. The new guns offer a much quicker cleaner refill process when compared to a traditional bulk fill grease gun. Simply screw the cartridge into the gun and the vacuum will draw the grease from the cartridge as the handle is pumped, no need for any springs or excess priming.

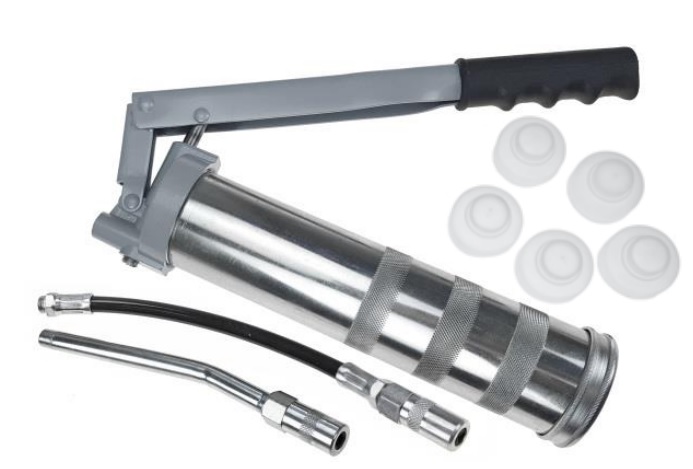

NEW Side lever action vacuum system grease gun - VLB1080 (Metric)

Side lever grease gun suitable for use with all Din 1284 and standard screw-top 400g cartridges. The spring-less �ready-to-go� design uses a vacuum action for clean loading, safer operation and simple cartridge replacement. The vacuum delivery system uses the full capacity of the cartridge and leaves the cartridge fully emptied. Galvanised steel grease reservoir with ergonomically designed lever mechanism. Supplied with cranked rigid and flexible extension pipe, 1/8" BSP 4 jaw coupler and 5 x follower seals:

Maximum delivery pressure 5,800psi
Delivery per stroke 1.9cm3
Threaded head for connecting 400g screw-in cartridges
Metal barrel housing to accept all standard (DIN1284) cartridges (to be used with re-usable follower inserts - 5 supplied).
Supplied with 1/8" BSP rigid cranked connecting pipe and 1/8" BSP 300mm flexible connecting pipe
Supplied with 1/8" BSP 4 jaw connector

NEW Pistol grip vacuum system grease gun - VLB1081 (Metric)

Single handed, pistol grip grease gun suitable for use with all Din 1284 and screw-top 400g cartridges. The spring-less �ready-to-go� design uses a patented vacuum action for clean loading, safer operation and simple cartridge replacement. The vacuum delivery system uses the full capacity of the cartridge and leaves the cartridge fully emptied. Galvanised steel grease reservoir with ergonomically designed lever mechanism. Supplied with rigid straight and flexible extension pipe, 1/8� BSP 4 jaw coupler and 5 x follower seals.

Maximum delivery pressure 2,900psi
Delivery per stroke 1.1cm3
Threaded head for connecting 400g screw-in cartridges
Metal barrel housing to accept all standard (DIN1284) cartridge (to be used with re-usable follower inserts - 5 supplied).
Supplied with 1/8" BSP straight cranked connecting pipe
Supplied with 1/8" BSP 4 jaw connector

NEW Screw top grease cartridges for vacuum grease guns

Vapormatic is pleased to announce the introduction of new 400gr screw top grease cartridges to support the existing quality range of grease products.

The introduction of these cartridges is in response to the growing usage of cleaner vacuum grease guns that mostly use screw top cartridges.

These new 400gr screw top cartridges are available with three different greases, including:-

Multi-purpose grease (VLB1076)
Lithium Complex grease (Red) VLB1073
NEW Lithium Complex grease (Blue) which is water resistant (VLB1075).

These new screw top cartridges can be used with Vapormatic's vacuum grease guns, including:-

VLB1060 Multi Gun - This gun can be used with any type of cartridge (screw top and standard)
NEW VLB1070 - Lever action Vacuum system grease gun (Metric)
NEW VLB1071 - Pistol grip vacuum system grease gun (Metric) Quality Grease
VLB1056 Multi-purpose Grease 400gr standard DIN cartridge
VLB1076 Multi-purpose Grease 400gr Screw top cartridge

A premium lithium soap thickened high melting point grease, EP treated with good anti-corrosion properties, with the following benefits:

Excellent multi-purpose grease
For use in anti-friction and plain bearing applications subjected to high load conditions
Recommended for use in highly loaded industrial and automotive applications such as wheel bearings, pump bearings

etc. * Suitable for use in high pressure greasing equipment

VLB1033 Lithium Complex Grease (Red) 400gr standard DIN cartridge VLB1073 Lithium Complex Grease (Red) 400gr screw top cartridge VLB1075 Lithium Complex Grease (Blue) water resistant 400gr screw top cartridge

Lithium Complex is a premium quality, multi-purpose long life grease; it is manufactured from lithium soaps and extreme pressure additives, with the following benefits:

Recommended for use in highly loaded industrial and automotive applications such as wheel bearings, pump bearings etc. and all anti-friction & plain bearings subjected to high load conditions
Primarily designed as wheel bearing and chassis grease
Can replace ordinary lithium greases in many arduous industrial applications
Suitable for use in high pressure greasing equipment
Conforms to the latest specifications
Approved by leading bearing manufacturers
Water resistant with the Blue Specification

Multi Gun Greasing System - Part No. VLB1060

The 'Multi Gun' greasing system is a twin handled, vacuum system grease gun that can use multiple grease cartridge options, including:

Metal barrel housing to accept all standard (DIN1284) cartridges
Threaded head for connecting 500g screw-in cartridges
Adaptor for connecting 400g screw-in cartridges; including 'Lube Shuttle' screw grease cartridges

Clean, easy to handle and minimal waste, the 'Multi Gun' grease gun has many features, including:-
